Connecting Rods

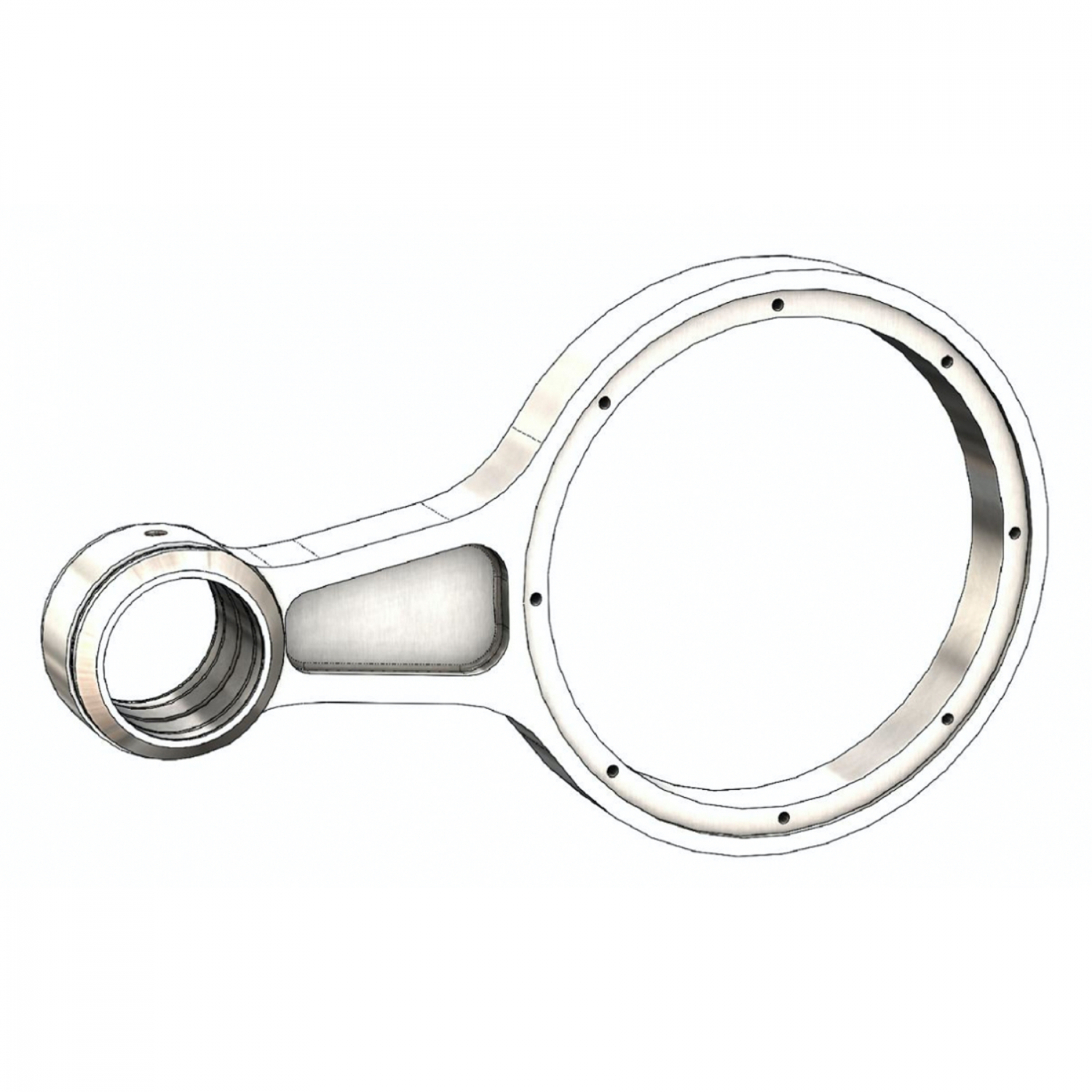

Connecting Rod - 3D Model

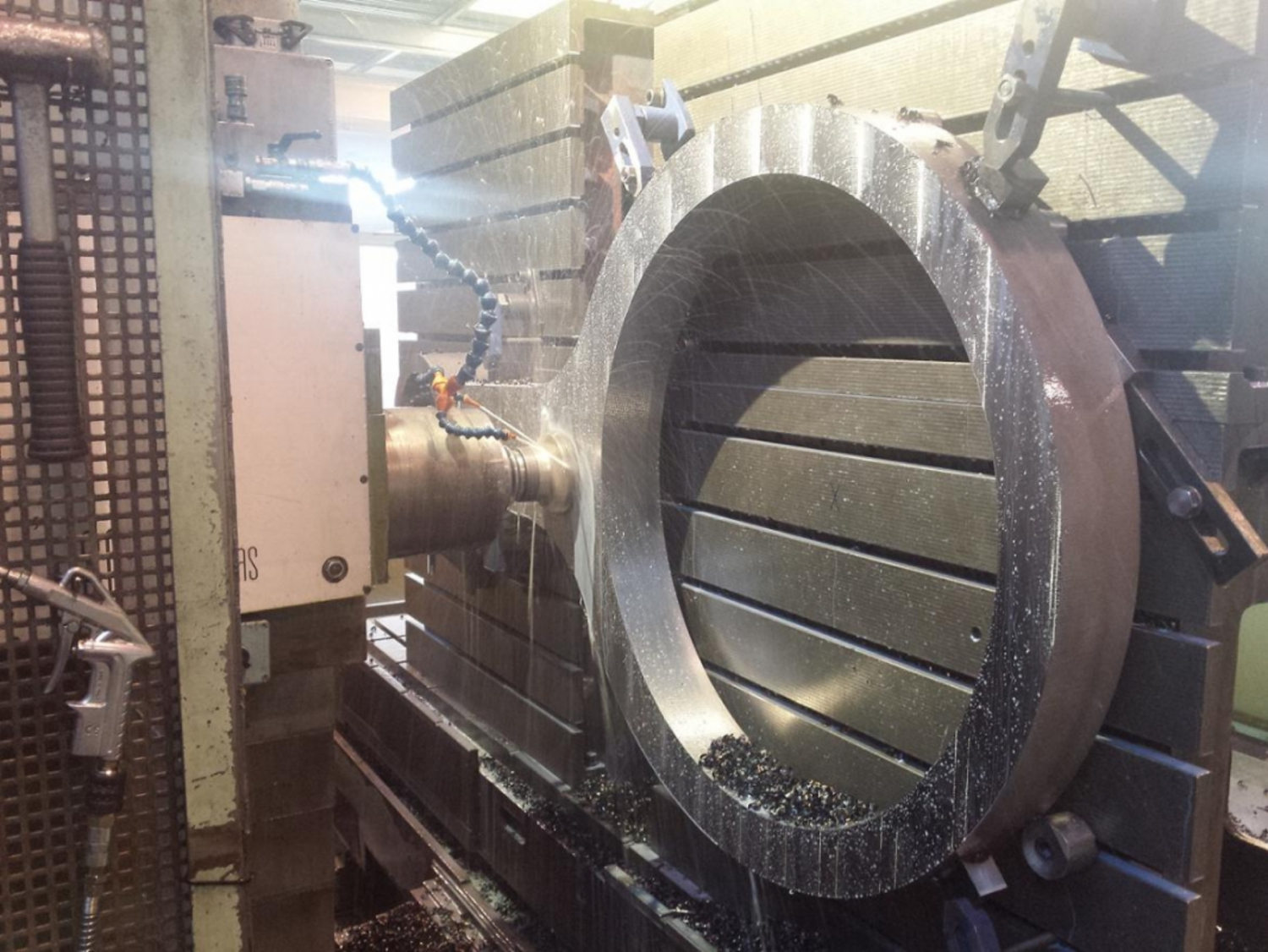

Connecting Rod TME01021 in process in TME

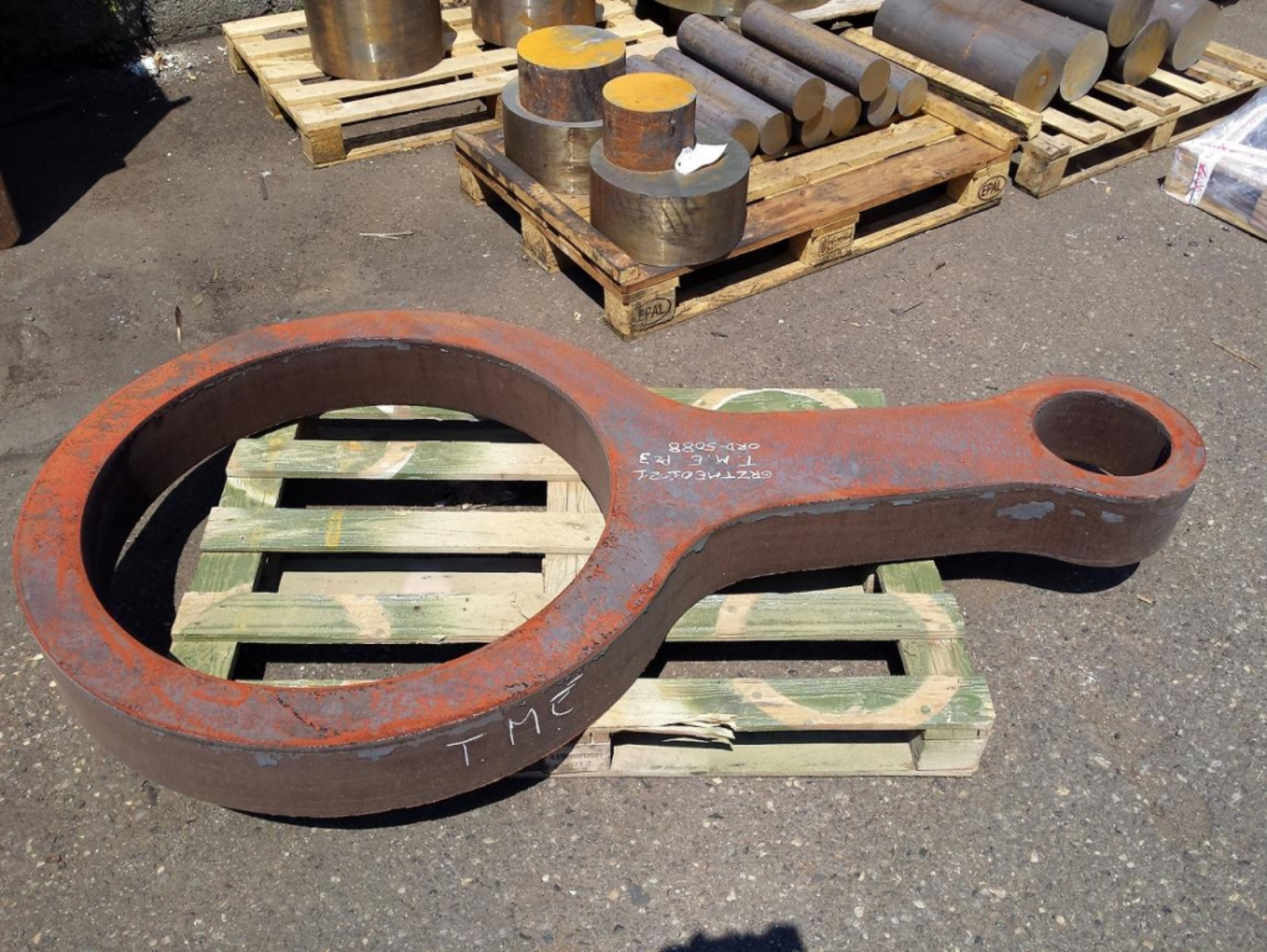

Connecting Rod TME01021 after heat treatment

Tecno Meccanica Emiliana realizes different types of Connecting Rod, for technical features and sizes.

Use to design the innovative FEM system for structural calculation.

Every Connecting Rod is made with high strength and toughness steel, heat treated to give the product excellent quality, durability and reliability in use.

The starting material is certified and one Italian origin.

Each Connecting Rod that we realize, undergoes a heat treatment to improve the wear resistance, deformation and damage.

During the working cycle, the Connecting Rods are subjected to strict non-destructive testing, such as ultrasound inspections and penetrant tests.

To ensure the final suitability of all products, after every single processing we perform strict dimensional checks.

All mechanical processes are performed at our factory.



Features and benefits:

- Built with forged material of high quality and only Italian origin.

- Increased resistance to breakage and longer life.

- Hydrostatic testing and checks for integrity of the material.

- Heat treatments.

- Competitive prices.

ALL TYPES OF CONNECTING ROD THAT TME REALIZES:

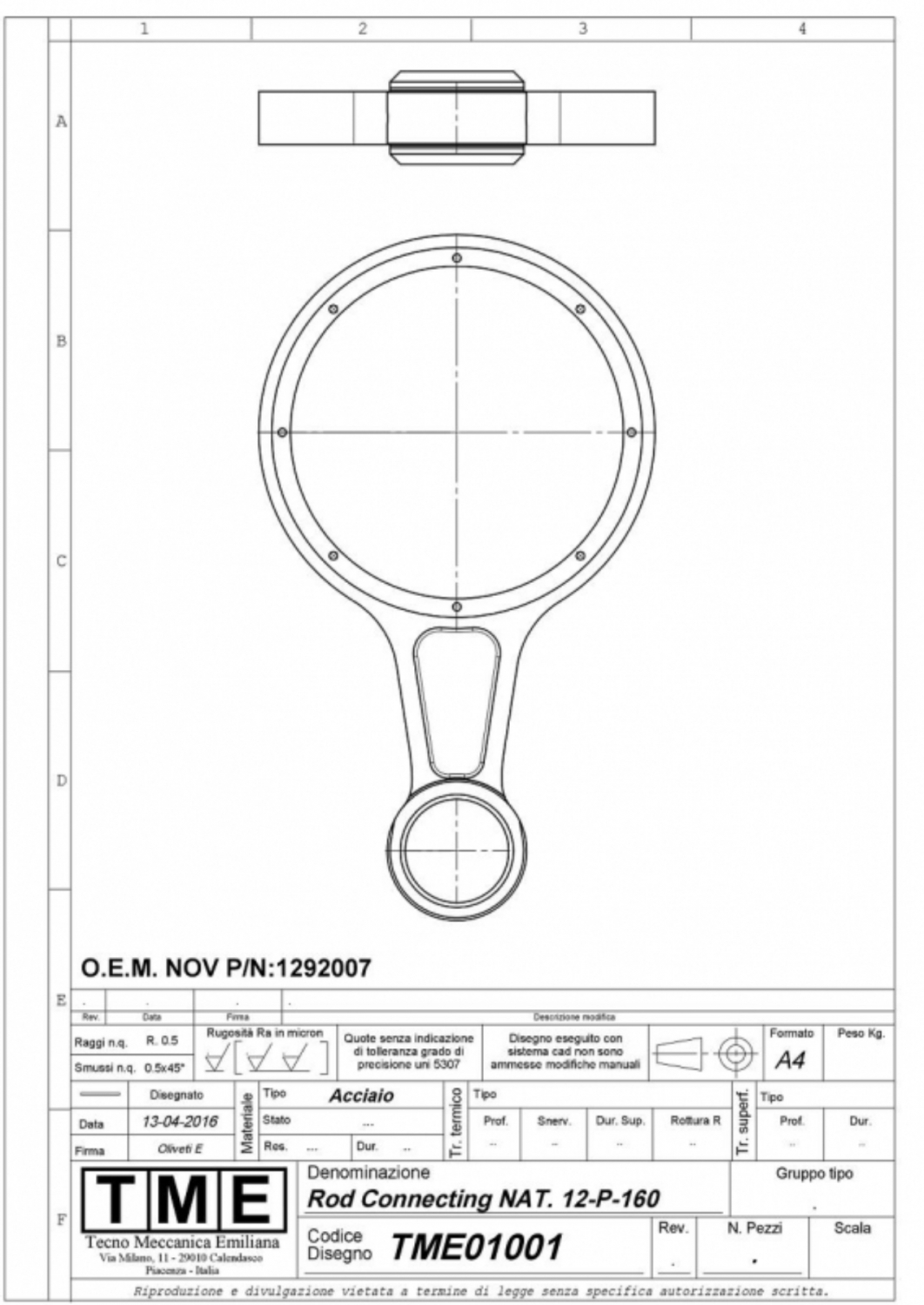

CONNECTING ROD FOR NATIONAL MUD PUMP 12-P-160- COD. TME01001

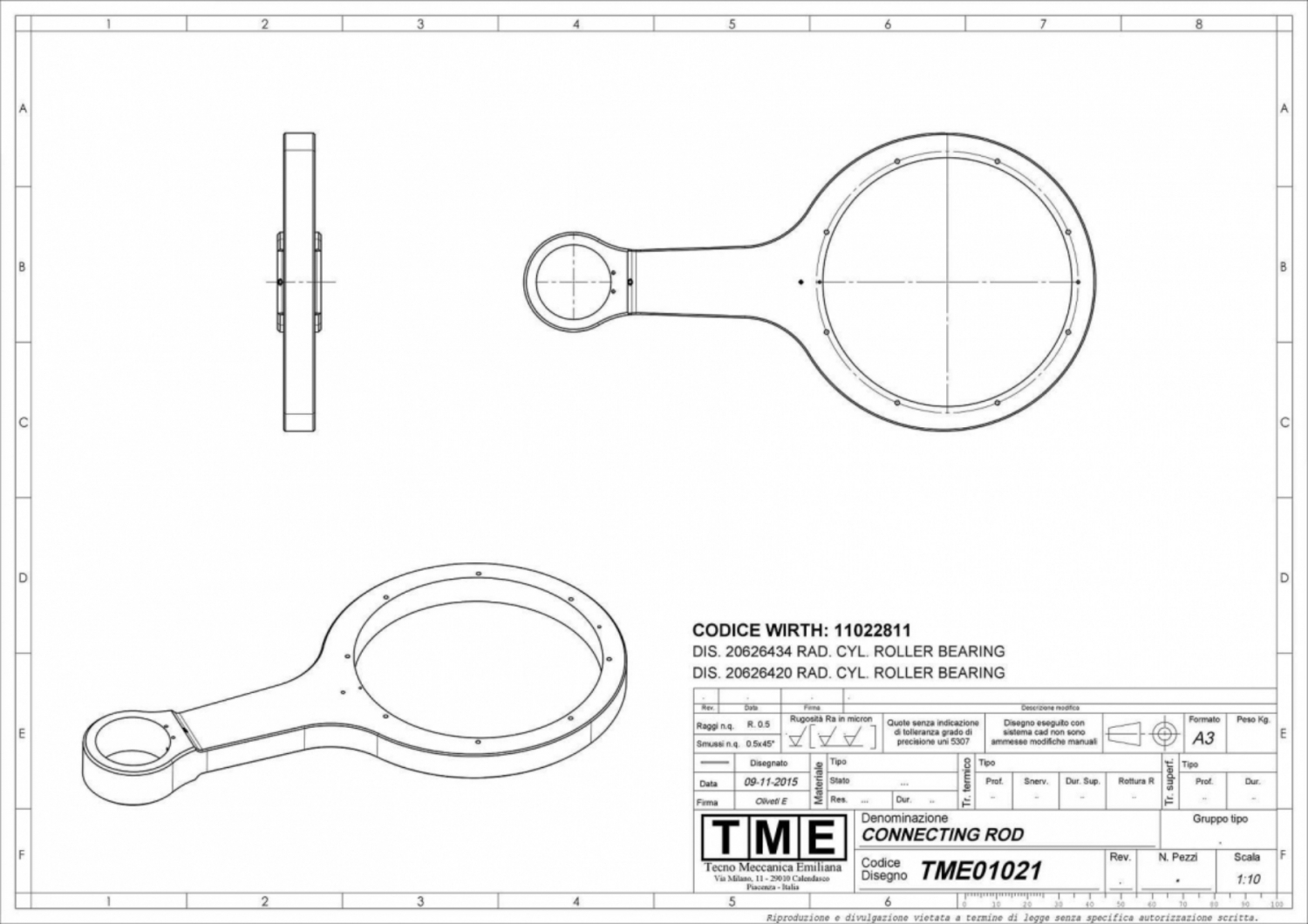

CONNECTING ROD FOR WIRTH MUD PUMP- COD. TME01021

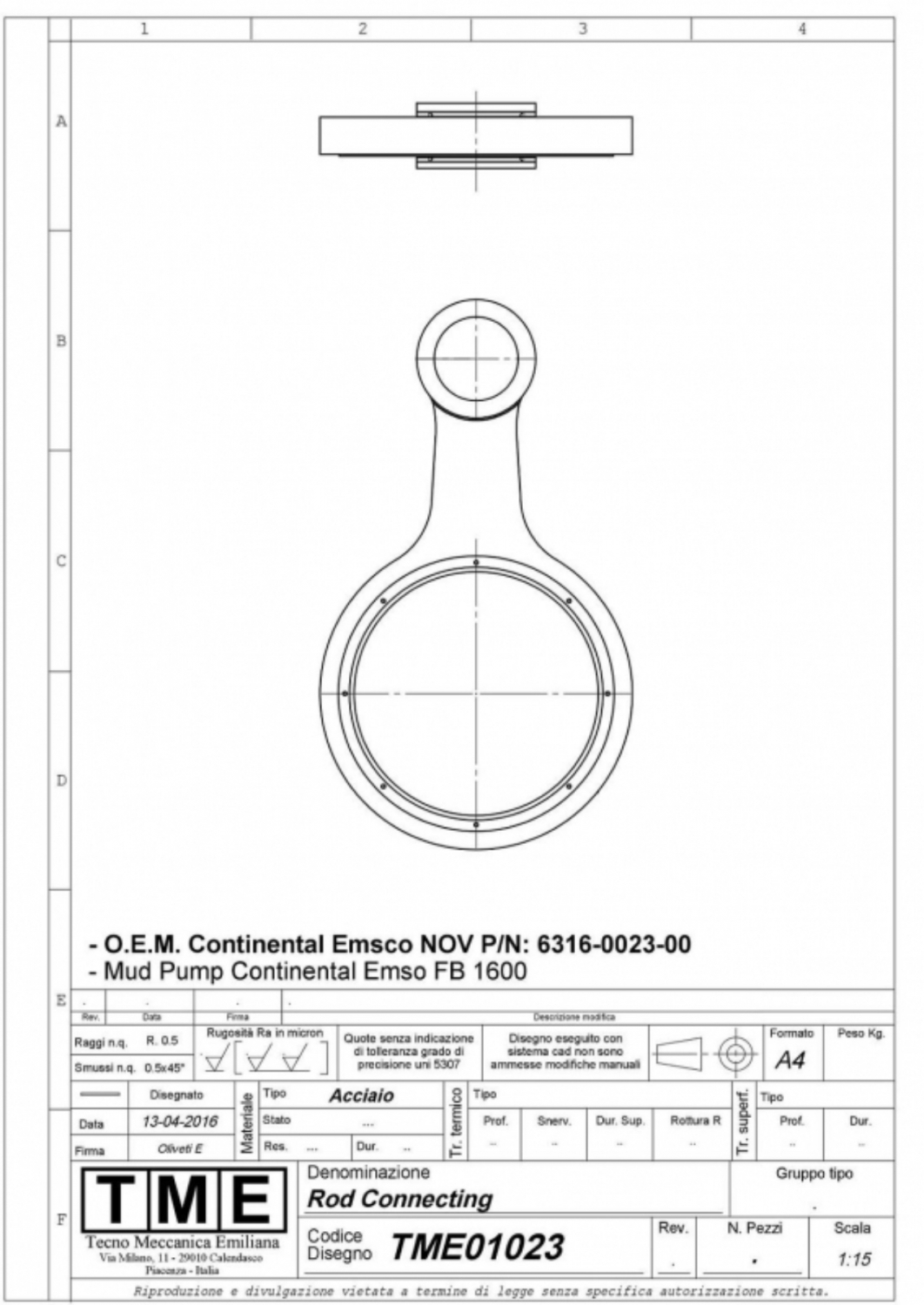

CONNECTING ROD FOR CONTINENTAL EMSCO MUD PUMP FB1600- COD. TME01023

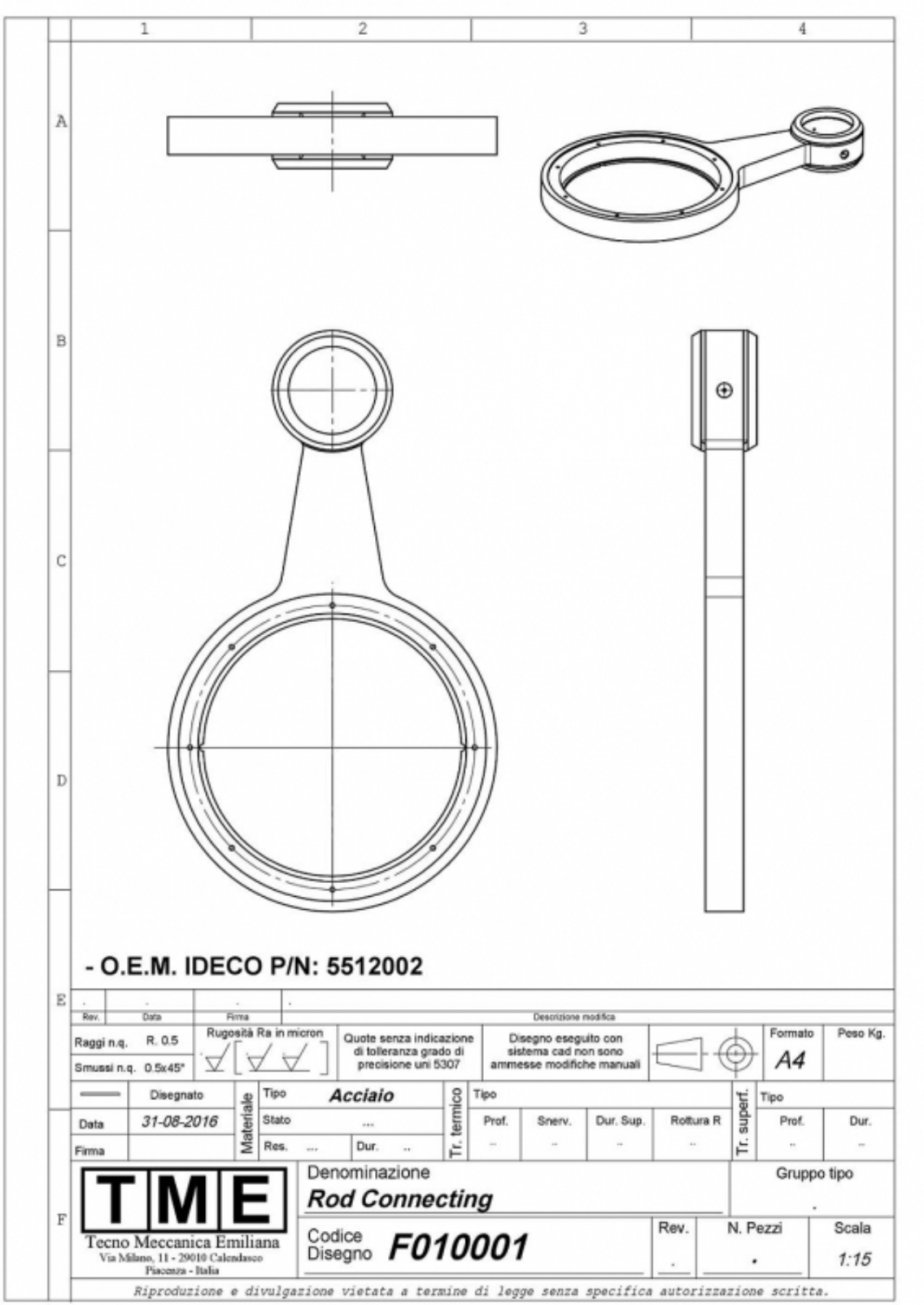

CONNECTING ROD FOR IDECO MUD PUMP - COD. F010001

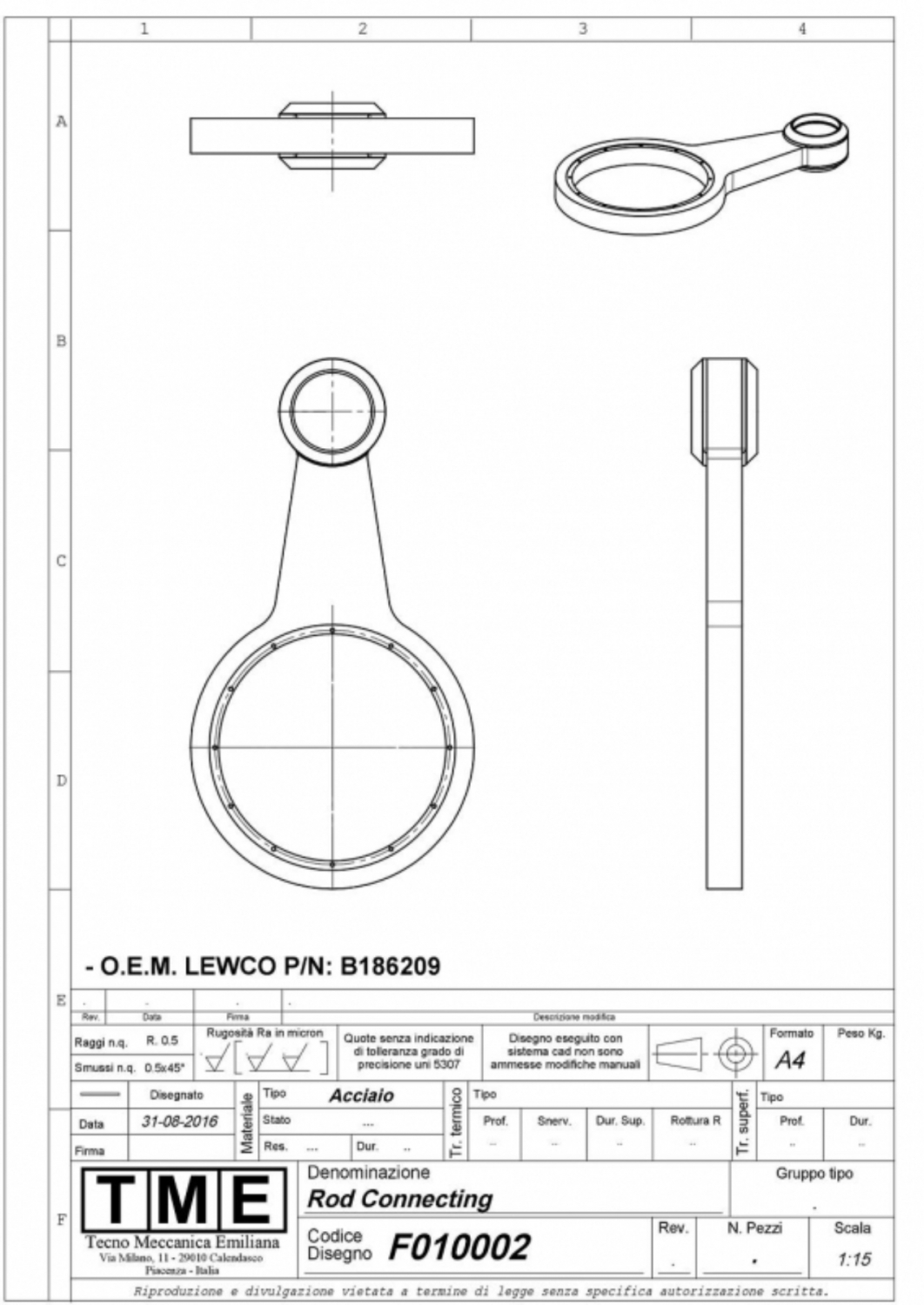

CONNECTING ROD FOR LEWCO MUD PUMP - COD. F010002
